README

A docking layout manager provided by dockViewR can be used as front-end to a blockr board using this package.

Installation

# install.packages("pak")
pak::pak("BristolMyersSquibb/blockr.dock")

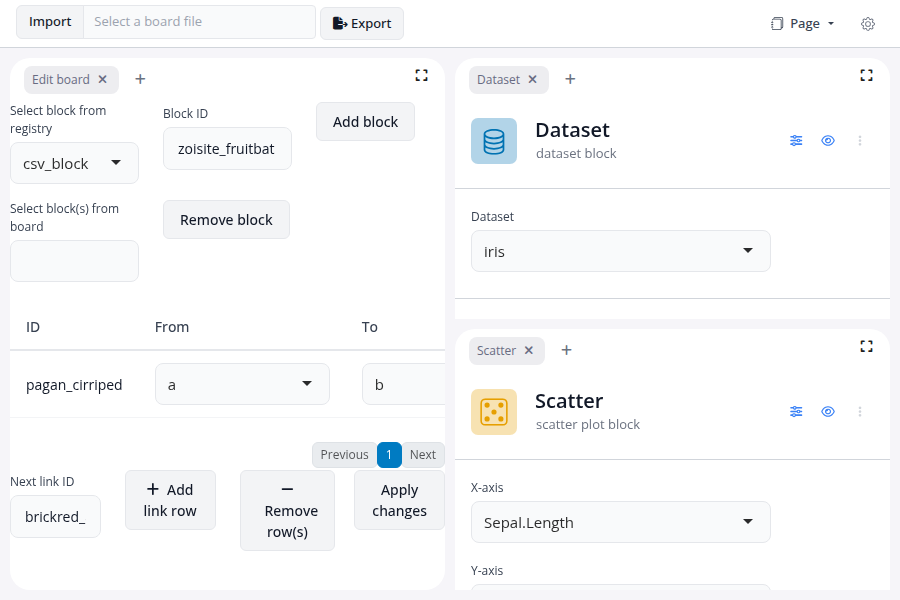

Simple dock

To start up a board for visualizing Sepal.Length against Sepal.Width for the iris dataset:

library(blockr.dock)
library(blockr.core)

serve(
  new_dock_board(
    blocks = c(
      a = new_dataset_block("iris"),
      b = new_scatter_block(x = "Sepal.Length", y = "Sepal.Width")
    ),
    links = list(from = "a", to = "b", input = "data"),
    extensions = list(edit = new_edit_board_extension()),
    layout = list("edit", list("a", "b"))
  )
)

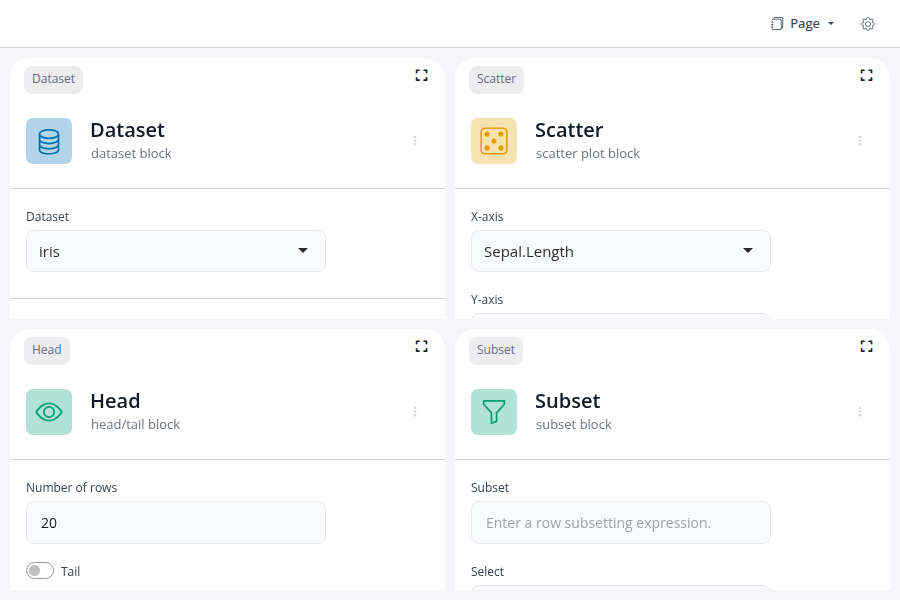

Locked dock

A locked dock prevents users from adding or removing blocks and extensions. Drag-and-drop and panel resizing are also disabled.

library(blockr.dock)
library(blockr.core)

options(blockr.dock_is_locked = TRUE)

serve(
  new_dock_board(
    blocks = c(
      a = new_dataset_block("iris"),
      b = new_head_block(n = 20L),
      c = new_scatter_block(x = "Sepal.Length", y = "Sepal.Width"),
      d = new_subset_block()
    ),
    links = c(
      new_link("a", "b", input = "data"),
      new_link("b", "c", input = "data"),
      new_link("b", "d", input = "data")
    ),
    layout = list(list("a", "b"), list("c", "d"))
  )
)

Layouts

Since blockr.dock 0.1.1 every board carries a dock_layouts object: a list of one or more views, exposed as a tab dropdown at the top of the app. The single-page case (what rendered as a no-tab dock in 0.1.0) is now a dock_layouts with one auto-named "Page" view, which is what you see in the Simple dock screenshot above.

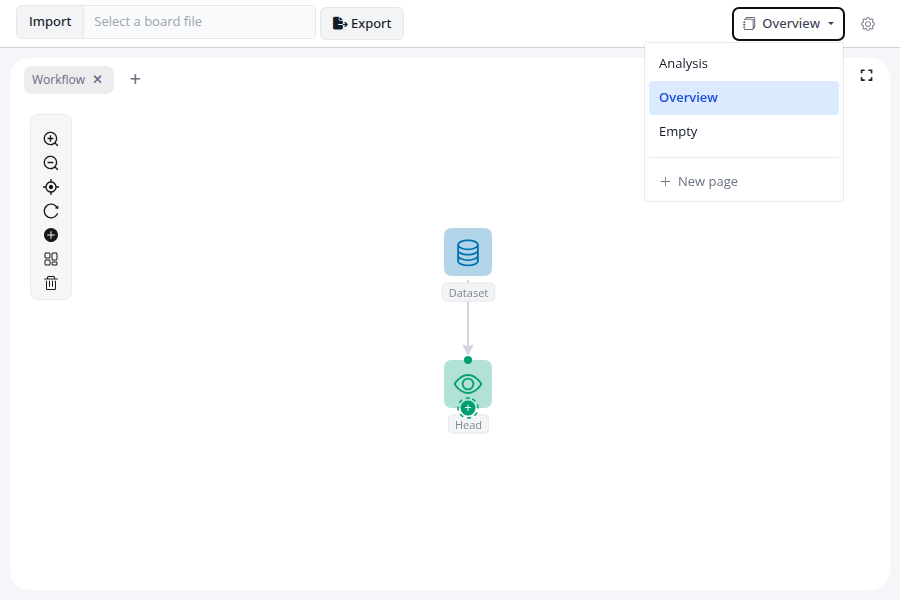

To define multiple views explicitly, pass a dock_layouts(...) to layout. Each named entry becomes a tab; blocks and extensions are shared across views via the board’s DAG, view membership is a layout concern only.

library(blockr.core)
library(blockr.dock)

board <- new_dock_board(
  extensions = blockr.dag::new_dag_extension(),
  blocks = c(
    dataset_1 = new_dataset_block(),
    head_1 = new_head_block()
  ),
  links = new_link("dataset_1", "head_1"),
  layout = dock_layouts(
    Analysis = list("dataset_1", "head_1", "dag_extension"),
    Overview = dock_view("dag_extension", active = TRUE),
    Empty = list()
  )
)

serve(board, "my_board")

For the full set of shapes accepted by new_dock_board(layout = ...) (nested grids, tabbed panels, active-view selection, the coercion rules that normalise everything to a dock_layouts), see vignette("layouts", package = "blockr.dock").
