stats19 provides functions for downloading and formatting road crash data. Specifically, it enables access to the UK’s official road traffic casualty database, STATS19. (The name comes from the form used by the police to record car crashes and other incidents resulting in casualties on the roads.)
The raw data is provided as a series of .csv files that
contain integers and which are stored in dozens of .zip
files. Finding, reading-in and formatting the data for research can be a
time consuming process subject to human error. stats19
speeds up these vital but boring and error-prone stages of the research
process with a single function: get_stats19(). By allowing
public access to properly labelled road crash data,
stats19 aims to make road safety research more
reproducible and accessible.
For transparency and modularity, each stage can be undertaken separately, as documented in the stats19 vignette.
The package has now been peer reviewed and is stable, and has been published in the Journal of Open Source Software (Lovelace et al. 2019). Please tell people about the package, link to it and cite it if you use it in your work.
Install and load the latest version with:
remotes::install_github("ropensci/stats19")library(stats19)You can install the released version of stats19 from CRAN with:
install.packages("stats19")get_stats19() requires year and
type parameters, mirroring the provision of STATS19 data
files, which are categorised by year (from 1979 onward) and type (with
separate tables for crashes, casualties and vehicles, as outlined
below). The following command, for example, gets crash data from 2022
(note: we follow the “crash not accident” campaign of
RoadPeace
in naming crashes, although the DfT refers to the relevant tables as
‘accidents’ data):
crashes = get_stats19(year = 2022, type = "collision")
#> Files identified: dft-road-casualty-statistics-collision-2022.csv
#> https://data.dft.gov.uk/road-accidents-safety-data/dft-road-casualty-statistics-collision-2022.csv
#> Data already exists in data_dir, not downloading
#> Reading in:
#> ~/data/stats19/dft-road-casualty-statistics-collision-2022.csv
#> date and time columns present, creating formatted datetime column
#> Warning: NAs introduced by coercion
#> Warning: NAs introduced by coercion
#> Warning: NAs introduced by coercionWhat just happened? For the year 2022 we read-in
crash-level (type = "collision") data on all road crashes
recorded by the police across Great Britain. The dataset contains 37
columns (variables) for 106,004 crashes. We were not asked to download
the file (by default you are asked to confirm the file that will be
downloaded). The contents of this dataset, and other datasets provided
by stats19, are outlined below and described in more
detail in the stats19
vignette.
We will see below how the function also works to get the
corresponding casualty and vehicle datasets for 2022. The package also
allows STATS19 files to be downloaded and read-in separately, allowing
more control over what you download, and subsequently read-in, with
read_collisions(), read_casualties() and
read_vehicles(), as described in the vignette.
Data files can be downloaded without reading them in using the
function dl_stats19(). If there are multiple matches, you
will be asked to choose from a range of options. Providing just the
year, for example, will result in the following options:
dl_stats19(year = 2022, data_dir = tempdir())Multiple matches. Which do you want to download?
1: dft-road-casualty-statistics-casualty-2022.csv
2: dft-road-casualty-statistics-vehicle-2022.csv
3: dft-road-casualty-statistics-collision-2022.csv
Selection:
Enter an item from the menu, or 0 to exitSTATS19 data consists of 3 main tables:
The contents of each is outlined below.
Crash data was downloaded and read-in using the function
get_stats19(), as described above.
nrow(crashes)
#> [1] 106004
ncol(crashes)
#> [1] 37Some of the key variables in this dataset include:
key_column_names = grepl(pattern = "severity|speed|pedestrian|light_conditions", x = names(crashes))
crashes[key_column_names]
#> # A tibble: 106,004 × 5
#> accident_severity speed_limit pedestrian_crossing_hu…¹ pedestrian_crossing_…²
#> <chr> <chr> <chr> <chr>
#> 1 Slight 30 None within 50 metres No physical crossing …
#> 2 Slight 50 None within 50 metres Pelican, puffin, touc…
#> 3 Slight 30 None within 50 metres No physical crossing …
#> 4 Slight 30 None within 50 metres No physical crossing …
#> 5 Slight 50 None within 50 metres No physical crossing …
#> 6 Serious 30 None within 50 metres No physical crossing …
#> 7 Slight 30 None within 50 metres No physical crossing …
#> 8 Slight 40 None within 50 metres No physical crossing …
#> 9 Slight 30 None within 50 metres Pedestrian phase at t…
#> 10 Serious 20 None within 50 metres Zebra
#> # ℹ 105,994 more rows
#> # ℹ abbreviated names: ¹pedestrian_crossing_human_control,
#> # ²pedestrian_crossing_physical_facilities
#> # ℹ 1 more variable: light_conditions <chr>For the full list of columns, run names(crashes) or see
the vignette.
As with crashes, casualty data for 2022 can be
downloaded, read-in and formatted as follows:
casualties = get_stats19(year = 2022, type = "casualty", ask = FALSE, format = TRUE)
#> Files identified: dft-road-casualty-statistics-casualty-2022.csv
#> https://data.dft.gov.uk/road-accidents-safety-data/dft-road-casualty-statistics-casualty-2022.csv
#> Data already exists in data_dir, not downloading
#> Warning: The following named parsers don't match the column names:
#> accident_severity, carriageway_hazards, date, day_of_week,
#> did_police_officer_attend_scene_of_accident, first_road_class,
#> first_road_number, junction_control, junction_detail, Latitude,
#> light_conditions, local_authority_district, local_authority_highway,
#> local_authority_ons_district, location_easting_osgr, location_northing_osgr,
#> longitude, lsoa_of_accident_location, number_of_casualties, number_of_vehicles,
#> pedestrian_crossing_human_control, pedestrian_crossing_physical_facilities,
#> police_force, road_surface_conditions, road_type, second_road_class,
#> second_road_number, special_conditions_at_site, speed_limit, time,
#> trunk_road_flag, urban_or_rural_area, weather_conditions, vehicle_text,
#> vehicle_type, age_band_of_driver, age_of_driver, age_of_vehicle,
#> driver_home_area_type, driver_imd_decile, engine_capacity_cc,
#> first_point_of_impact, generic_make_model, hit_object_in_carriageway,
#> hit_object_off_carriageway, journey_purpose_of_driver, junction_location,
#> propulsion_code, sex_of_driver, skidding_and_overturning,
#> towing_and_articulation, vehicle_direction_from, vehicle_direction_to,
#> vehicle_leaving_carriageway, vehicle_left_hand_drive,
#> vehicle_location_restricted_lane, vehicle_manoeuvre
#> Warning in asMethod(object): NAs introduced by coercion
nrow(casualties)
#> [1] 135480
ncol(casualties)
#> [1] 19The results show that there were 135,480 casualties reported by the police in the STATS19 dataset in 2022, and 19 columns (variables). Values for a sample of these columns are shown below:
casualties[c(4, 5, 6, 14)]
#> # A tibble: 135,480 × 4
#> vehicle_reference casualty_reference casualty_class bus_or_coach_passenger
#> <chr> <chr> <chr> <chr>
#> 1 2 1 Driver or rider Not a bus or coach pass…
#> 2 1 1 Driver or rider Not a bus or coach pass…
#> 3 1 1 Driver or rider Not a bus or coach pass…
#> 4 1 1 Driver or rider Not a bus or coach pass…
#> 5 1 2 Passenger Not a bus or coach pass…
#> 6 1 1 Driver or rider Not a bus or coach pass…
#> 7 2 2 Driver or rider Not a bus or coach pass…
#> 8 3 3 Driver or rider Not a bus or coach pass…
#> 9 1 1 Driver or rider Not a bus or coach pass…
#> 10 1 2 Passenger Not a bus or coach pass…
#> # ℹ 135,470 more rowsThe full list of column names in the casualties dataset
is:
names(casualties)
#> [1] "accident_index" "accident_year"
#> [3] "accident_reference" "vehicle_reference"
#> [5] "casualty_reference" "casualty_class"
#> [7] "sex_of_casualty" "age_of_casualty"
#> [9] "age_band_of_casualty" "casualty_severity"
#> [11] "pedestrian_location" "pedestrian_movement"
#> [13] "car_passenger" "bus_or_coach_passenger"
#> [15] "pedestrian_road_maintenance_worker" "casualty_type"
#> [17] "casualty_home_area_type" "casualty_imd_decile"
#> [19] "lsoa_of_casualty"Data for vehicles involved in crashes in 2022 can be downloaded, read-in and formatted as follows:
vehicles = get_stats19(year = 2022, type = "vehicle", ask = FALSE, format = TRUE)
#> Files identified: dft-road-casualty-statistics-vehicle-2022.csv
#> https://data.dft.gov.uk/road-accidents-safety-data/dft-road-casualty-statistics-vehicle-2022.csv
#> Data already exists in data_dir, not downloading
#> Warning: The following named parsers don't match the column names:
#> accident_severity, carriageway_hazards, date, day_of_week,
#> did_police_officer_attend_scene_of_accident, first_road_class,
#> first_road_number, junction_control, junction_detail, Latitude,
#> light_conditions, local_authority_district, local_authority_highway,
#> local_authority_ons_district, location_easting_osgr, location_northing_osgr,
#> longitude, lsoa_of_accident_location, number_of_casualties, number_of_vehicles,
#> pedestrian_crossing_human_control, pedestrian_crossing_physical_facilities,
#> police_force, road_surface_conditions, road_type, second_road_class,
#> second_road_number, special_conditions_at_site, speed_limit, time,
#> trunk_road_flag, urban_or_rural_area, weather_conditions, age_band_of_casualty,
#> age_of_casualty, bus_or_coach_passenger, car_passenger, casualty_class,
#> casualty_home_area_type, casualty_imd_decile, casualty_reference,
#> casualty_severity, casualty_type, pedestrian_location, pedestrian_movement,
#> pedestrian_road_maintenance_worker, sex_of_casualty, vehicle_text
#> Warning in asMethod(object): NAs introduced by coercion
nrow(vehicles)
#> [1] 193545
ncol(vehicles)
#> [1] 28The results show that there were 193,545 vehicles involved in crashes reported by the police in the STATS19 dataset in 2022, with 28 columns (variables). Values for a sample of these columns are shown below:
vehicles[c(3, 14:16)]
#> # A tibble: 193,545 × 4
#> accident_reference vehicle_leaving_carriageway hit_object_off_carriageway
#> <chr> <chr> <chr>
#> 1 010352073 Did not leave carriageway None
#> 2 010352073 Did not leave carriageway None
#> 3 010352573 Nearside Road sign or traffic signal
#> 4 010352573 Did not leave carriageway None
#> 5 010352575 Did not leave carriageway None
#> 6 010352575 Did not leave carriageway None
#> 7 010352578 Did not leave carriageway None
#> 8 010352578 Did not leave carriageway None
#> 9 010352580 Did not leave carriageway None
#> 10 010352580 Did not leave carriageway None
#> # ℹ 193,535 more rows
#> # ℹ 1 more variable: first_point_of_impact <chr>The full list of column names in the vehicles dataset
is:
names(vehicles)
#> [1] "accident_index" "accident_year"
#> [3] "accident_reference" "vehicle_reference"
#> [5] "vehicle_type" "towing_and_articulation"
#> [7] "vehicle_manoeuvre" "vehicle_direction_from"
#> [9] "vehicle_direction_to" "vehicle_location_restricted_lane"
#> [11] "junction_location" "skidding_and_overturning"
#> [13] "hit_object_in_carriageway" "vehicle_leaving_carriageway"
#> [15] "hit_object_off_carriageway" "first_point_of_impact"
#> [17] "vehicle_left_hand_drive" "journey_purpose_of_driver"
#> [19] "sex_of_driver" "age_of_driver"
#> [21] "age_band_of_driver" "engine_capacity_cc"
#> [23] "propulsion_code" "age_of_vehicle"
#> [25] "generic_make_model" "driver_imd_decile"
#> [27] "driver_home_area_type" "lsoa_of_driver"An important feature of STATS19 data is that the collision table
contains geographic coordinates. These are provided at ~10m resolution
in the UK’s official coordinate reference system (the Ordnance Survey
National Grid, EPSG code 27700). stats19 converts the
non-geographic tables created by format_collisions() into
the geographic data form of the sf package
with the function format_sf() as follows:
crashes_sf = format_sf(crashes)
#> 22 rows removed with no coordinatesThe note arises because NA values are not permitted in
sf coordinates, and so rows containing no coordinates are
automatically removed. Having the data in a standard geographic form

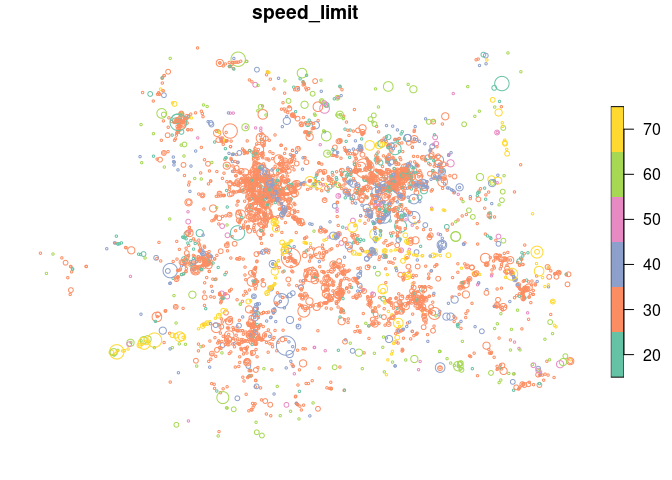

allows various geographic operations to be performed on it. The
following code chunk, for example, returns all crashes within the
boundary of West Yorkshire (which is contained in the object police_boundaries,
an sf data frame containing all police jurisdictions in
England and Wales).
library(sf)
library(dplyr)
wy = filter(police_boundaries, pfa16nm == "West Yorkshire")
#> old-style crs object detected; please recreate object with a recent sf::st_crs()
crashes_wy = crashes_sf[wy, ]
nrow(crashes_sf)
#> [1] 105982
nrow(crashes_wy)
#> [1] 4400This subsetting has selected the 4,400 crashes which occurred within West Yorkshire in 2022.
The three main tables we have just read-in can be joined by shared key variables. This is demonstrated in the code chunk below, which subsets all casualties that took place in Leeds, and counts the number of casualties by severity for each crash:
sel = casualties$accident_index %in% crashes_wy$accident_index
casualties_wy = casualties[sel, ]
names(casualties_wy)
#> [1] "accident_index" "accident_year"
#> [3] "accident_reference" "vehicle_reference"
#> [5] "casualty_reference" "casualty_class"
#> [7] "sex_of_casualty" "age_of_casualty"
#> [9] "age_band_of_casualty" "casualty_severity"
#> [11] "pedestrian_location" "pedestrian_movement"
#> [13] "car_passenger" "bus_or_coach_passenger"
#> [15] "pedestrian_road_maintenance_worker" "casualty_type"
#> [17] "casualty_home_area_type" "casualty_imd_decile"
#> [19] "lsoa_of_casualty"
cas_types = casualties_wy %>%
select(accident_index, casualty_type) %>%
mutate(n = 1) %>%
group_by(accident_index, casualty_type) %>%
summarise(n = sum(n)) %>%
tidyr::spread(casualty_type, n, fill = 0)
cas_types$Total = rowSums(cas_types[-1])
cj = left_join(crashes_wy, cas_types, by = "accident_index")What just happened? We found the subset of casualties that took place
in West Yorkshire with reference to the accident_index
variable. Then we used functions from the tidyverse
package dplyr (and spread() from
tidyr) to create a dataset with a column for each
casualty type. We then joined the updated casualty data onto the
crashes_wy dataset. The result is a spatial
(sf) data frame of crashes in Leeds, with columns counting
how many road users of different types were hurt. The original and
joined data look like this:
crashes_wy %>%
select(accident_index, accident_severity) %>%
st_drop_geometry()
#> # A tibble: 4,400 × 2
#> accident_index accident_severity
#> * <chr> <chr>
#> 1 2022121205585 Slight
#> 2 2022131127664 Slight
#> 3 2022131127681 Serious
#> 4 2022131127764 Serious
#> 5 2022131127766 Slight
#> 6 2022131127829 Slight
#> 7 2022131127841 Serious
#> 8 2022131127847 Slight
#> 9 2022131127861 Slight
#> 10 2022131127881 Slight
#> # ℹ 4,390 more rows
cas_types[1:2, c("accident_index", "Cyclist")]
#> # A tibble: 2 × 2
#> # Groups: accident_index [2]
#> accident_index Cyclist
#> <chr> <dbl>
#> 1 2022121205585 0
#> 2 2022131127664 0
cj[1:2, c(1, 5, 34)] %>% st_drop_geometry()
#> # A tibble: 2 × 3
#> accident_index latitude lsoa_of_accident_location
#> * <chr> <dbl> <chr>
#> 1 2022121205585 53.8 E01027904
#> 2 2022131127664 53.7 E01011132The join operation added a geometry column to the casualty data, enabling it to be mapped (for more advanced maps, see the vignette):
cex = cj$Total / 3
plot(cj["speed_limit"], cex = cex)
The spatial distribution of crashes in West Yorkshire clearly relates to the region’s geography. Crashes tend to happen on busy Motorway roads (with a high speed limit, of 70 miles per hour, as shown in the map above) and city centres, of Leeds and Bradford in particular. The severity and number of people hurt (proportional to circle width in the map above) in crashes is related to the speed limit.
STATS19 data can be used as the basis of road safety research. The map below, for example, shows the results of an academic paper on the social, spatial and temporal distribution of bike crashes in West Yorkshire, which estimated the number of crashes per billion km cycled based on commuter cycling as a proxy for cycling levels overall (more sophisticated measures of cycling levels are now possible thanks to new data sources) (Lovelace, Roberts, and Kellar 2016):
We can also explore seasonal trends in crashes by aggregating crashes by day of the year:
library(ggplot2)
head(cj$date)
#> [1] "2022-08-03" "2022-01-01" "2022-01-01" "2022-01-01" "2022-01-01"
#> [6] "2022-01-01"
class(cj$date)
#> [1] "Date"
crashes_dates = cj %>%
st_set_geometry(NULL) %>%
group_by(date) %>%
summarise(
walking = sum(Pedestrian),
cycling = sum(Cyclist),
passenger = sum(`Car occupant`)
) %>%
tidyr::gather(mode, casualties, -date)
ggplot(crashes_dates, aes(date, casualties)) +
geom_smooth(aes(colour = mode), method = "loess") +
ylab("Casualties per day")
#> `geom_smooth()` using formula = 'y ~ x'
Different types of crashes also tend to happen at different times of day. This is illustrated in the plot below, which shows the times of day when people who were travelling by different modes were most commonly injured.
library(stringr)
crash_times = cj %>%
st_set_geometry(NULL) %>%
group_by(hour = as.numeric(str_sub(time, 1, 2))) %>%
summarise(
walking = sum(Pedestrian),
cycling = sum(Cyclist),
passenger = sum(`Car occupant`)
) %>%
tidyr::gather(mode, casualties, -hour)
ggplot(crash_times, aes(hour, casualties)) +
geom_line(aes(colour = mode))
Note that cycling manifests distinct morning and afternoon peaks (see Lovelace, Roberts, and Kellar 2016 for more on this).
Examples of how the package can been used for policy making include:
Use of methods taught in the stats19-training vignette by road safety analysts at Essex Highways and the Safer Essex Roads Partnership (SERP) to inform the deployment of proactive front-line police enforcement in the region (credit: Will Cubbin).
Mention of road crash data analysis based on the package in an article
on urban SUVs. The question of how vehicle size and type relates to road
safety is an important area of future research. A starting point for
researching this topic can be found in the stats19-vehicles
vignette, representing a possible next step in terms of how the data can
be used.
There is much important research that needs to be done to help make the transport systems in many cities safer. Even if you’re not working with UK data, we hope that the data provided by stats19 data can help safety researchers develop new methods to better understand the reasons why people are needlessly hurt and killed on the roads.
The next step is to gain a deeper understanding of stats19 and the data it provides. Then it’s time to pose interesting research questions, some of which could provide an evidence-base in support policies that save lives. For more on these next steps, see the package’s introductory vignette.
The stats19 package builds on previous work, including:
